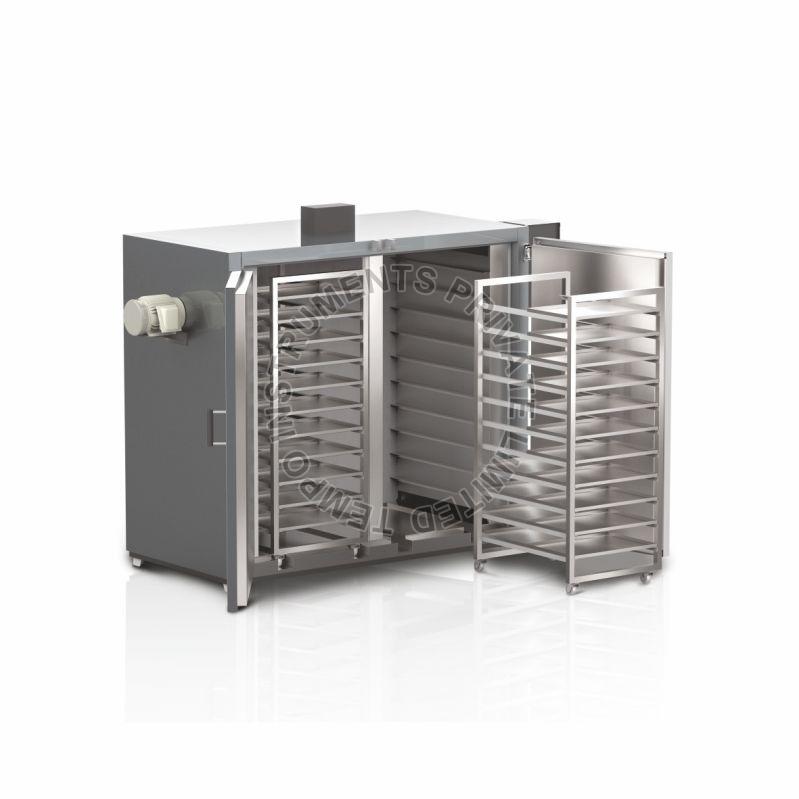

Tray Dryer

“TEMPO” make a tray dryer are with the forced air circulation provided by means of motorized blower fitted on the oven for recirculation of air which ensures a homogeneous hot air mixture and an exact temperature profile.

Standard Models

• Inside mild steel with silver heat resistant paint and outer mild steel with Hammerton paint.
• Inside SS 304 mirror finish and outer mild steel with Hammerton paint.

GMP Models

• Inside SS 304 with mirror polish & outer stainless steel 304 with a matt finish.
• Inside SS 316 with mirror polish & outer stainless steel 304 with a matt finish.

Construction
Double walls are constructed on heavy angles. All sides of the ovens are insulated with 7.5 cm thick glass wool insulation to minimize ski temperature. The panels are designed in such a way that the inner and outer wall contact to minimize the heat losses through conduction.

Technical Specification

• Controlling System : Microprocessors based autotune PID temperature controller with & dual display of set value & process value for precise control of temperature with PT 100 sensor is used for temperature.
• Heating System : SS tubular heating elements used on the side walls to maintain a uniform temperature condition inside the chamber.
• Air Circulation : The motorized blower fitted on the top side of the chamber develop unique airflow system which ensures maximum temperature distribution inside the temperature. The unique airflow assures that there is a quick recovery after the doors are opened.

Features
Double walled two doors provided with silicon gasket at front side, heavy duty hinges and ball latch locking system.

Safety Features
Safety standby thermostat cuts off the heater supply in case of overshoot of temperature.

Optional Features

• CFR 21 part 11 compliance software for data logger
• Data logger
• Data scanner complete with sensor
• Safety digital temperature controller
• Timer
