Product Details

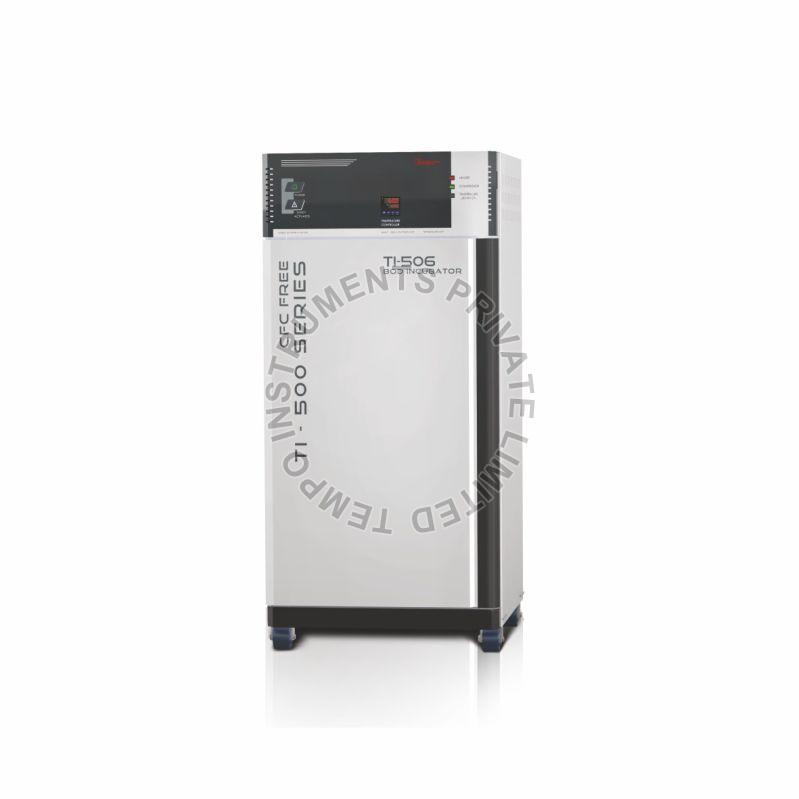

“TEMPO” make BOD incubators are manufactured to comply requirement of industries. Specifically designed for the long term and stable continuous operation ideal for pharmaceuticals, biotechnology and research institutions for storage and incubation studies. Incubators to provide a condition for optimal growth of microbiology cultures, biological labs for the preservation of vaccines, serological and complement fixation tests, General low temperature uses in physical /chemical labs, R&D centre, quality control laboratory, general laboratories of industries, pharmaceuticals, chemicals, petrochemicals, oil & gas, cement, pulp and paper, fertilizers, defence, railways, paint etc.
Standard Models
Inside S.S. 304 with mirror polish & Outside mild steel powder coated.
GMP Models
Inside S.S. 316 with mirror polish & Outside stainless steel 304 with dull the buff finish.
Construction
BOD Incubator is made of double walled construction with thick high grade PUF insulation. Full view inner acrylic door & front door with gasket & locking arrangement. The motorized blower at backside of the chamber develops a unique air ow system to maintain uniform temperature condition inside the chamber. Unique air ow assures quick recovery after door openings. The unit is provided with a user friendly adjustable specially designed S.S rod trays ensure uniform temperature distribution. The equipment is mounted on castor wheels for easy movement.
Technical Specification
- Controlling System : Microprocessor based autotune PID temperature controller with a dual display of set value & process value for precise control of temperature.
- Sensor : PT 100 sensor is used for sensing the temperature.
- Heating System : High quality S.S. tubular heaters are used for better heating.
- Humidity System : Steam injection system (non-condensing type) & reservoir tank with water level arrangement with indicator.
- Refrigeration System : CFC free hermetically sealed Emerson Copeland make compressor for better cooling with R134 A (eco-friendly) refrigerant with a time delay to safe guard compressor system.
- Validation Port : 50mm validation porthole with silicon rubber seal to insert sensor for validation.
Features
Full view observation Acrylic door with a gasket to observe the sample inside the chamber. Interior illumination for working area. Specially designed stainless steel rod trays ensure uniform temperature distribution.
Safety Features
Safety standby thermostat to cut off heater supply in case of overshoot of temperature. Inbuilt overload protector provided for the hermetically sealed compressor. Compressor ON delay timer (2 min) to safeguard the compressor.
Optional Features
- PLC based control system
- Stand by refrigeration system.
- Ethernet / RS485 communication
- Data logger
- Data scanner complete with sensor
- SMS mobile alert system
- Door access security system
- Safety digital temperature controller
- Digital timer
- Safety digital temperature controller
- CFR 21 part 11 compliance software
Specifications
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) |
Trays |
| TI – 500 S / G | 100 | 50 × 50 × 40 | 2 |
| TI – 501 S / G | 170 | 70 × 60 × 40 | 2 |
| TI – 502 S / G | 200 | 60 × 60 × 60 | 2 |
| TI – 503 S / G | 285 | 80 × 60 × 60 | 3 |
| TI – 504 S / G | 325 | 90 × 60 × 60 | 4 |
| TI – 505 S / G | 400 | 110 × 60 × 60 | 4 |
| TI – 506 S / G | 600 | 125 × 70 × 70 | 4 |
| TI – 507 S / G | 800 | 125 × 80 × 80 | 5 |
| TI – 508 S / G | 1000 | 157 × 80 × 80 | 5 |
| TI – 509 S / G | 1500 (Double door) | 146 × 150 × 69 | 10 |
| TI – 510 S / G | 2000 (Double door) | 146 × 150 × 92 | 10 |
