Laboratory Incubators

“TEMPO” make bacteriological incubator are specially designed for research laboratories, engineering lab, pharmaceutical lab, cosmetic industry, chemical lab, clinical lab, microbiological determination, pharmaceutical stability assays, food processing, QC, etc.

Standard Models
Inside SS 304 with mirror polish & outside mild steel duly powder coated.

GMP Models
Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

Construction
“TEMPO” make bacteriological incubator are made up of double walled construction. Full view inner acrylic door & front door with gasket & lock. The motorized blower is fitted on the backside for uniform temperature (only forced air circulation model). Insulation is provided by means of suitable PUF insulation. The unit is provided with adjustable stainless steel rod trays.

Technical Specification

• Controlling System : Microprocessor based autotune PID temperature controller with a dual display of the value and process value for precise control of temperature with PT 100 sensor is used.
• Air Circulation (only forced air circulation) : The motorized blower at the backside of the chamber develops a unique airflow system which ensures maximum uniform temperature distribution inside the chamber. A unique airflow ensures quick recovery after the doors are opened.
• Heating System : Forced air circulation model – high quality SS tubular heaters are used for better heating conditions.
• Natural convection model – the heating elements are made from the best quality Kanthal/Nichrome wire for refractory purpose.

Features
Full view observation acrylic door with a gasket to observe the sample inside the chamber. A specially designed stainless steel rod trays ensure uniform temperature distribution.

Safety Features
Safety standby thermostat to cut off heater supply in case of overshoot of temperature.

Optional Features

• CFR 21 part 11 compliance software for data logger
• Data logger
• Data scanner complete with sensor
• Safety digital temperature controller
• Timer
• Motor Speed Controller

“TEMPO” make BOD incubators are manufactured to comply requirement of industries. Specifically designed for the long term and stable continuous operation ideal for pharmaceuticals, biotechnology and research institutions for storage and incubation studies. Incubators to provide a condition for optimal growth of microbiology cultures, biological labs for the preservation of vaccines, serological and complement fixation tests, General low temperature uses in physical /chemical labs, R&D centre, quality control laboratory, general laboratories of industries, pharmaceuticals, chemicals, petrochemicals, oil & gas, cement, pulp and paper, fertilizers, defence, railways, paint etc.

Standard Models
Inside S.S. 304 with mirror polish & Outside mild steel powder coated.

GMP Models
Inside S.S. 316 with mirror polish & Outside stainless steel 304 with dull the buff finish.

Construction
BOD Incubator is made of double walled construction with thick high grade PUF insulation. Full view inner acrylic door & front door with gasket & locking arrangement. The motorized blower at backside of the chamber develops a unique air ow system to maintain uniform temperature condition inside the chamber. Unique air ow assures quick recovery after door openings. The unit is provided with a user friendly adjustable specially designed S.S rod trays ensure uniform temperature distribution. The equipment is mounted on castor wheels for easy movement.

Technical Specification

• Controlling System : Microprocessor based autotune PID temperature controller with a dual display of set value & process value for precise control of temperature.
• Sensor : PT 100 sensor is used for sensing the temperature.
• Heating System : High quality S.S. tubular heaters are used for better heating.
• Humidity System : Steam injection system (non-condensing type) & reservoir tank with water level arrangement with indicator.
• Refrigeration System : CFC free hermetically sealed Emerson Copeland make compressor for better cooling with R134 A (eco-friendly) refrigerant with a time delay to safe guard compressor system.
• Validation Port : 50mm validation porthole with silicon rubber seal to insert sensor for validation.

Features
Full view observation Acrylic door with a gasket to observe the sample inside the chamber. Interior illumination for working area. Specially designed stainless steel rod trays ensure uniform temperature distribution.

Safety Features
Safety standby thermostat to cut off heater supply in case of overshoot of temperature. Inbuilt overload protector provided for the hermetically sealed compressor. Compressor ON delay timer (2 min) to safeguard the compressor.

Optional Features

• PLC based control system
• Stand by refrigeration system.
• Ethernet / RS485 communication
• Data logger
• Data scanner complete with sensor
• SMS mobile alert system
• Door access security system
• Safety digital temperature controller
• Digital timer
• Safety digital temperature controller
• CFR 21 part 11 compliance software

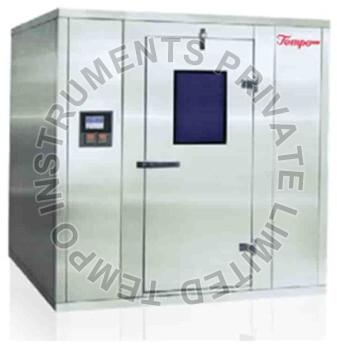

When your testing requires a walk in rooms choose “TEMPO” controlled temperatures solution. Our test rooms feature automated process control, energy efficiency and a vast range of other features and options. Every “TEMPO” environmental room features equipment that reliably produces required conditions, structural integrity that keeps the room working properly through years of demanding test cycles, and measuring/monitoring equipment that precisely records all test data.

Standard Models
Inside S.S. 304 with mirror polish & outside mild steel powder coated.

GMP Models
Inside S.S. 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

Construction
Double walled constructed PUF modular panels ensure easy assembly at site. The leak proof door with a full gasket and airtight mechanical lock ensures there is no leakage through the chamber. The observation window (30 × 30 cm) is provided for viewing the sample inside the chamber. The unit is provided with perforated stainless steel trays.

Technical Specification

• Air Circulation : The motorized blower at the backside of the chamber provides the recirculation of air which ensure the maximum uniformity of temperature and humidity inside the chamber should be maintained.
• Heating System : The high quality SS tubular heater made from the nichrome wire sheathed in SS tube is used. The special arrangement of heaters avoids the direct rendition of stored samples.
• Humidity System : High-quality U shape S.S. tubular heater is used for better heating.
• Humidity System : Steam injection system with water level arrangement is provided. A low pressure boiler tank and reservoir tank with duly argon welded is fitted with a float valve. When the water level in the tank is low the switch cut off. The ISI marked heating elements are used with the inbuilt stand by humidity system with auto change over the facility.
• Refrigeration System : The CFC Free hermetically sealed Emerson Copeland make compressor is used for better cooling with eco friendly refrigerant. The cooling system is made up of split type and the compressor is coupled with the condenser unit in a well ventilated area to avoid the hot air throw inside the chamber.
• Control System : The microprocessor based PLC (logging capacity of 1000 readings) with HMI touch screen 4.3″ colour display, which gives the direct display, the process value and the set value of temperature and humidity inside the chamber. The sensor (transmitter type 4-20 ma) which will accurately measure the temperature and humidity is provided with a high speed ethernet communication. The internal working area is illuminated.

Features
The sturdy design and long lasting finish ensure the minimum maintenance is required. The tongue and the grooves are moulded to close tolerance ensuring there is a tight fit between the panels. These prevent the condensation from forming on the foam a which minimizes the heat transfer. The high quality hardware like hinges and handles used in panels are indigenous and are imported.

Safety Features

• Audio visual alarms are used for temperature and humidity variations.
• If the temperature increases above the 60°C the system will automatically cut off the dry heater, wet heater and the compressor.
• The float switch is used to cut off the wet heater supply in case of the water level in the tank goes below.

Optional Features

• CFR 21 part 11 compliance software for PLC with RS 485 or ethernet communication
• Data logger
• CFR 21 part 11 compliance software for data logger
• Data scanner complete with sensor
• SMS mobile alert system
• Door access security system

When your testing requires a walk in rooms choose “TEMPO” controlled temperatures solution. Our test rooms feature automated process control, energy efficiency and a vast range of other features and options. Every “TEMPO” environmental room features equipment that reliably produces required conditions, structural integrity that keeps the room working properly through years of demanding test cycles, and measuring/monitoring equipment that precisely records all test data.

Standard Models
Inside S.S. 304 with mirror polish & outside mild steel powder coated.

GMP Models
Inside S.S. 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

Construction
Double walled constructed PUF modular panels ensure easy assembly at site. The leak proof door with a full gasket and airtight mechanical lock ensures there is no leakage through the chamber. The observation window (30 × 30 cm) is provided for viewing the sample inside the chamber. The unit is provided with perforated stainless steel trays.

Technical Specification

• Air Circulation : The motorized blower at the backside of the chamber provides the recirculation of air which ensure the maximum uniformity of temperature and humidity inside the chamber should be maintained.
• Heating System : The high quality SS tubular heater made from the nichrome wire sheathed in SS tube is used. The special arrangement of heaters avoids the direct rendition of stored samples.
• Humidity System : High-quality U shape S.S. tubular heater is used for better heating.
• Humidity System : Steam injection system with water level arrangement is provided. A low pressure boiler tank and reservoir tank with duly argon welded is fitted with a float valve. When the water level in the tank is low the switch cut off. The ISI marked heating elements are used with the inbuilt stand by humidity system with auto change over the facility.
• Refrigeration System : The CFC Free hermetically sealed Emerson Copeland make compressor is used for better cooling with eco friendly refrigerant. The cooling system is made up of split type and the compressor is coupled with the condenser unit in a well ventilated area to avoid the hot air throw inside the chamber.
• Control System : The microprocessor based PLC (logging capacity of 1000 readings) with HMI touch screen 4.3″ colour display, which gives the direct display, the process value and the set value of temperature and humidity inside the chamber. The sensor (transmitter type 4-20 ma) which will accurately measure the temperature and humidity is provided with a high speed ethernet communication. The internal working area is illuminated.

Features
The sturdy design and long lasting finish ensure the minimum maintenance is required. The tongue and the grooves are moulded to close tolerance ensuring there is a tight fit between the panels. These prevent the condensation from forming on the foam a which minimizes the heat transfer. The high quality hardware like hinges and handles used in panels are indigenous and are imported.

Safety Features

• Audio visual alarms are used for temperature and humidity variations.
• If the temperature increases above the 60°C the system will automatically cut off the dry heater, wet heater and the compressor.
• The float switch is used to cut off the wet heater supply in case of the water level in the tank goes below.

Optional Features

• CFR 21 part 11 compliance software for PLC with RS 485 or ethernet communication
• Data logger
• CFR 21 part 11 compliance software for data logger
• Data scanner complete with sensor
• SMS mobile alert system
• Door access security system
