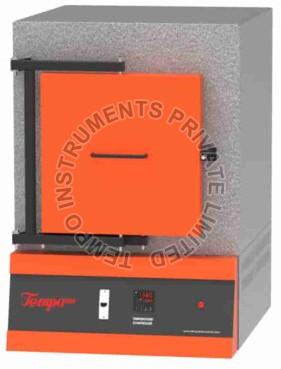

Deluxe Laboratory Furnace 1300C

“TEMPO” laboratory furnaces are designed for higher temperature applications. The design is based on the highest standards for quality with efficient high-temperature use and minimal maintenance. Silicon carbide element with easy assembly. These lab furnaces are Ideal for rapid cycling over extended periods.

The advance design feature provides fast heat up and recovery with excellent uniformity and energy efficiency, increased resistance to thermal shock, ideal for rapid cycling over extended periods.

Standard Models
Outside mild steel with hammertone paint

GMP Models
Outside stainless steel 304

Construction
This laboratory muffle furnace is designed to operate under high temperature with minimal maintenance and higher efficiency. The
high-temperature ceramic fibre insulation with an advanced graded design ensures fast heat-up time and resistance to the thermal shock. The natural cooling of the outer surface reduces exterior shell temperatures and improve energy efficiency and operator safety.

The thermocouples compensated lead wire and polarized plug for measures accurate high-temperature with a longer self-life. Removable panels for easy access to replaceable heating elements and thermocouples. The heating is achieved by silicon carbide element with easy mounting and assembly.

Temperature Control
The temperature is controlled by means of an imported microprocessor-based autotuned PID controller to avoid overshoot. CE marked and a dual display for set value and process value.

Optional Features

• CFR 21 part 11 compliance software for data logger
• Safety digital temperature controller
• Data logger
• Timer
